Week 7 - Random Robots Painting

Date: 2026-10-05

Today

• More about objects in Lua
• Arrays vs Objects
• Creating objects dynamically
• Random Robots
• Strudel practice time

Slime mold!

Review L5 Community Jam Projects

L5 Community Jam

Using Objects

You now know how to use arrays (ordered tables) to store multiple values. objects let you group related values together using named properties instead of their index number.

The Problem with Multiple Arrays

Let’s say you used multiple arrays to store information about circles:

circleX = {100, 200, 150}
circleY = {100, 150, 200}
circleSpeedX = {2, -1, 1}
circleSpeedY = {1, 2, -2}

This approach is called parallel arrays. It works, but it has problems:

• It’s hard to keep track of which index goes with which circle
• If you add or remove a circle, you have to update multiple arrays
• The relationships between the data aren’t clear

Objects

An object is a table that uses named properties instead of an index number. This is also called an associative array - instead of accessing values with numbers like circleX[1], you can access them with names like circle.x.

To create an object in Lua, use curly brackets with key-value pairs. A key-value pair is a property name (the key) followed by = and then its value:

ball = {x = 100, y = 150, speedX = 2, speedY = 1}

This creates an object named ball with four properties: x, y, speedX, and speedY.

Accessing Object Properties

You can access object properties using dot notation:

print(ball.x)       -- prints 100
print(ball.speedX)  -- prints 2

You can also use bracket notation with strings:

print(ball["x"])       -- prints 100
print(ball["speedX"])  -- prints 2

Dot notation is usually easier to read, but bracket notation is useful when the property name is in a variable.

Modifying Object Properties

You can change object properties just like regular variables:

ball.x = ball.x + ball.speedX
ball.y = ball.y + ball.speedY

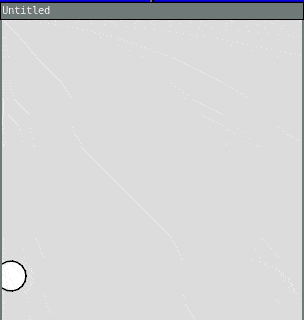

Here’s a complete example:

require("L5")

ball = {x = 150, y = 150, speedX = 2, speedY = 1}

function setup()
  size(300, 300)
end

function draw()
  background(220)

  -- Move ball
  ball.x = ball.x + ball.speedX
  ball.y = ball.y + ball.speedY

  -- Bounce off edges
  if ball.x < 0 or ball.x > width then
    ball.speedX = ball.speedX * -1
  end
  if ball.y < 0 or ball.y > height then
    ball.speedY = ball.speedY * -1
  end

  -- Draw ball
  circle(ball.x, ball.y, 30)
end

This is much clearer than using separate variables for each property!

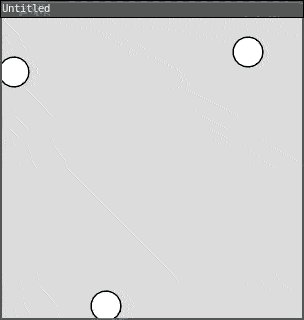

Arrays of Objects

The real power of objects comes when you combine them with arrays. Instead of multiple parallel arrays, you can have one array of objects:

require("L5")

circles = {
  {x = 100, y = 100, speedX = 2, speedY = 1},
  {x = 200, y = 150, speedX = -1, speedY = 2},
  {x = 150, y = 200, speedX = 1, speedY = -2}
}

function setup()
  size(300, 300)
end

function draw()
  background(220)

  for i = 1, #circles do
    -- Move circle
    circles[i].x = circles[i].x + circles[i].speedX
    circles[i].y = circles[i].y + circles[i].speedY

    -- Bounce off edges
    if circles[i].x < 0 or circles[i].x > width then
      circles[i].speedX = circles[i].speedX * -1
    end
    if circles[i].y < 0 or circles[i].y > height then
      circles[i].speedY = circles[i].speedY * -1
    end

    -- Draw circle
    circle(circles[i].x, circles[i].y, 30)
  end
end

Now all the data for each circle is grouped together, making the code easier to understand and maintain!

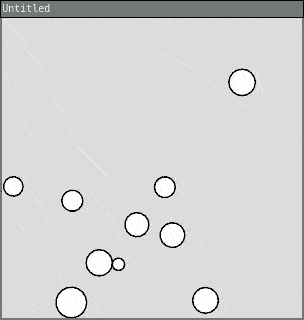

Creating Objects Dynamically

You can create new objects and add them to an array:

require("L5")

circles = {}

function setup()
  size(300, 300)

  -- Create 10 random circles
  for i = 1, 10 do
    newCircle = {
      x = random(width),
      y = random(height),
      speedX = random(-3, 3),
      speedY = random(-3, 3),
      size = random(10, 40)
    }
    table.insert(circles, newCircle)
  end
end

function draw()
  background(220)

  for i = 1, #circles do
    -- Move circle
    circles[i].x = circles[i].x + circles[i].speedX
    circles[i].y = circles[i].y + circles[i].speedY

    -- Bounce off edges
    if circles[i].x < 0 or circles[i].x > width then
      circles[i].speedX = circles[i].speedX * -1
    end
    if circles[i].y < 0 or circles[i].y > height then
      circles[i].speedY = circles[i].speedY * -1
    end

    -- Draw circle
    circle(circles[i].x, circles[i].y, circles[i].size)
  end
end

Each circle now has its own size too!

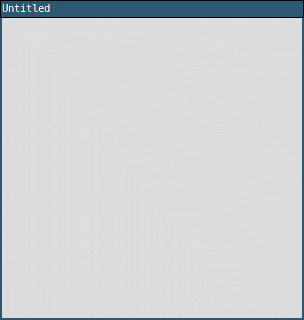

Interactive Example: Click to Add

Here’s an example where you can click to add new circles:

require("L5")

circles = {}

function setup()
  size(300, 300)
end

function draw()
  background(220)

  for i = 1, #circles do
    -- Move circle
    circles[i].x = circles[i].x + circles[i].speedX
    circles[i].y = circles[i].y + circles[i].speedY

    -- Bounce off edges
    if circles[i].x < 0 or circles[i].x > width then
      circles[i].speedX = circles[i].speedX * -1
    end
    if circles[i].y < 0 or circles[i].y > height then
      circles[i].speedY = circles[i].speedY * -1
    end

    -- Draw circle
    fill(circles[i].r, circles[i].g, circles[i].b)
    circle(circles[i].x, circles[i].y, circles[i].size)
  end
end

function mousePressed()
  newCircle = {
    x = mouseX,
    y = mouseY,
    speedX = random(-2, 2),
    speedY = random(-2, 2),
    size = random(20, 50),
    r = random(255),
    g = random(255),
    b = random(255)
  }
  table.insert(circles, newCircle)
end

Click anywhere to add a new bouncing circle with a random color and size!

Example: Particles

Objects are perfect for particle systems:

require("L5")

particles = {}

function setup()
  size(300, 300)
end

function draw()
  background(220, 220, 255)

  for i = #particles, 1, -1 do
    -- Update particle
    particles[i].y = particles[i].y + particles[i].speedY
    particles[i].life = particles[i].life - 1

    -- Draw particle
    fill(255, 255, 255, particles[i].life)
    circle(particles[i].x, particles[i].y, particles[i].size)

    -- Remove dead particles
    if particles[i].life <= 0 then
      table.remove(particles, i)
    end
  end
end

function mousePressed()
  -- Create burst of particles
  for i = 1, 20 do
    particle = {
      x = mouseX,
      y = mouseY,
      speedY = random(-5, -1),
      size = random(5, 15),
      life = 255
    }
    table.insert(particles, particle)
  end
end

Click to create a burst of particles that fade away! Notice we loop backwards (#particles, 1, -1) when removing items to avoid index problems.

Objects vs Arrays: When to Use Each

Use arrays (ordered tables) when: * You have a list of similar items * Order matters * You access items by position

Use objects when: * You have related data that belongs together * You want to access data by name, not number * You’re representing a “thing” with properties

Use arrays of objects when: * You have multiple “things” with the same properties * Each “thing” has several related values

Practice

• Create a simple game with player and enemy objects
• Build a starfield where each star is an object with position, size, and twinkle speed
• Make a drawing program where each stroke is stored as an object
• Create a simulation with objects that have different behaviors
• Build a simple physics engine with objects that have mass and velocity
• Make an interactive garden where each plant is an object that grows over time

The L5 reference at L5lua.org/reference has many more functions to explore. Most importantly: keep making things and have fun!

This section contains some text and concepts adapted from Using Objects by Lee Tusman and L5 Contributors and Using Objects by Happy Coding, licensed under CC BY 4.0

Workshop: Smart robot Alfie

Alfie is a little robot who needs to pick up all the objects in the room and return them.

Create 5 random round obstructions in the center line of the sketch.

Create 5 boxes on the left side of the canvas.

Alfie the robot starts on the right side. He should pick up the boxes one at a time and return them back to the right side of the screen for safekeeping.

OPTIONAL: Moving obstacles.

Strudel practice time
